The Ultimate Guide to Choosing the Right Raise Boring Reaming Head for Your Project

IntroductionIn the world of conventional raise boring, the reaming head is the most critical component determining the success, speed, and cost-efficiency of your shaft sinking project. For raise boring machine (RBM) end-users, selecting the correct reaming head is not just about matching the hole diameter; it is about navigating the unique logistical and geological constraints of your underground site. Whether you are dealing with tight transport cages, narrow drifts, or requiring extreme structural rigidity, understanding your equipment options is paramount.

Understanding Your Logistical ConstraintsThe primary challenge in underground raise boring often occurs before the drilling even starts: getting the equipment to the collaring site. Many underground mines have severe restrictions on transport weights and dimensions. If your site has large hoist cages and wide access drifts, you have the luxury of choosing equipment based solely on performance. However, if space is at a premium, modularity becomes your most important feature.

Integral vs. Segmented vs. Extendable: Making the CallTo solve these varying site demands, industry leaders like Sandvik have developed three distinct categories of reaming heads:

• Integral reaming heads (The Sandvik RS510): If your project has absolutely no size or weight restrictions for underground transport, an integral head is your first choice. Built as a single, massive core, these heads offer unmatched strength and rigidity. They are designed for heavy-duty applications where structural integrity is the top priority.

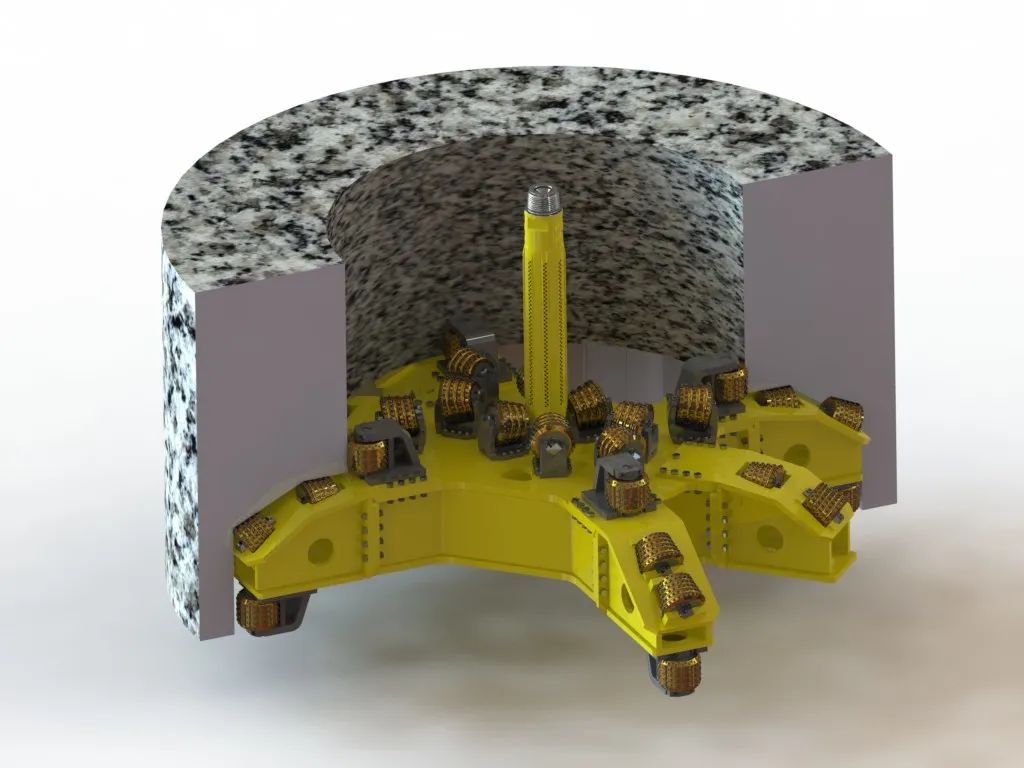

• Segmented reaming heads (The Sandvik RS520): What happens when an integral head simply will not fit in your mine's transport cage? The segmented reaming head is the solution. It features a base-head and removable segments, allowing operators to transport the dismantled unit through narrow drifts and reassemble it directly at the collaring site.

• Extendable reaming heads (The Sandvik RS530): For contractors who need both transportability and hole-size flexibility, the extendable head is a game-changer. By attaching different configurations of four or six segments to a base-head, operators can bore multiple raise diameters using the exact same base unit, drastically reducing capital expenditure.

ConclusionChoosing the right reaming head requires a careful assessment of your mine's infrastructure. By correctly matching your site's logistical profile with an integral, segmented, or extendable reaming head, you can minimize downtime, eliminate transport bottlenecks, and ensure a highly efficient raise boring operation.
