Overcoming Underground Transport Restrictions with Segmented reaming heads

The Bottleneck of Underground Equipment Transport

One of the most frustrating bottlenecks for raise boring end-users is discovering that your highly efficient, large-diameter reaming head cannot physically reach the drill site. Older mines, deep underground operations, and complex vein structures often rely on small transport cages and narrow access drifts. When equipment is too large or too heavy, operators are forced into costly, time-consuming logistical nightmares, sometimes having to widen drifts just to move machinery.

The Solution: Modular Segmented DesignTo solve this critical operational hurdle, drilling contractors are turning to segmented reaming heads, specifically engineered for sites with stringent size and weight restrictions. The Sandvik RS520 segmented reaming head is a prime example of this problem-solving engineering.

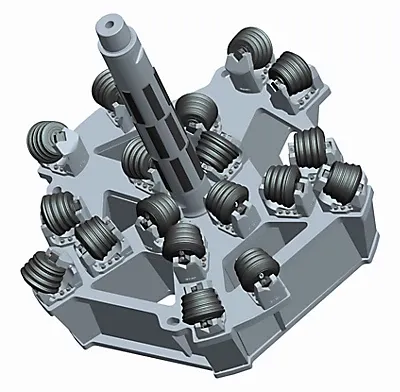

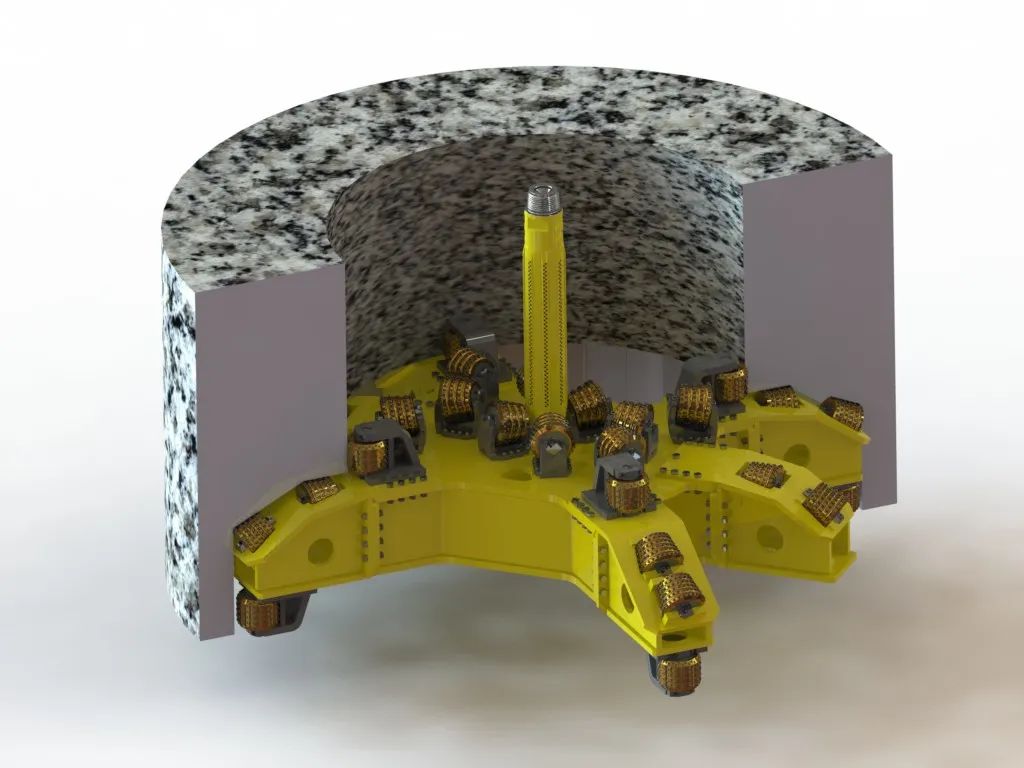

Instead of a single, massive piece of steel, the RS520 utilizes a modular design comprising a central base-head and two removable outer segments. This simple but highly effective design alteration completely changes how equipment is handled underground.

How Segmented Heads Improve On-Site Workflows

1. Easy Transportation: Because the segments can be detached, the overall width and weight of the heaviest component are drastically reduced. The dismantled reamer can easily be loaded into small cages, transported down the shaft, and navigated through tight, winding drifts without the risk of getting stuck or damaging mine infrastructure.

2. Simple On-Site Assembly: Once the components arrive at the collaring site, the segments are fixed to the base-head using standard mining tools. There is no need for specialized welding or complex calibration. All components, including the stem, segments, saddles, and cutters, are securely attached by high-strength bolts.

3. No Compromise on Performance: Despite being modular, segmented heads do not sacrifice Cutting efficiency. Like their integral counterparts, the Sandvik RS520 features a flat cutting profile. This ensures optimum rock-breaking performance, smooth rotation, and minimized vibration during the reaming process.

ConclusionTransport restrictions should never prevent you from executing a successful raise boring project. By utilizing segmented reaming heads, mine operators can bypass the limitations of narrow drifts and small cages, ensuring that the right tools get to the job site safely, quickly, and cost-effectively.
