Maximizing Hole-Size Flexibility and Reducing Costs with Extendable reaming heads

The High Cost of Raise Boring Equipment InventoryFor drilling contractors and mine operators, capital expenditure is a constant concern. conventional raise boring often requires boring shafts of varying diameters—ventilation shafts might require a large diameter, while ore passes or slot raises might require smaller ones. Historically, boring different sized holes meant purchasing and storing multiple, distinct Integral reaming heads. This not only tied up massive amounts of capital but also required extensive storage space and complex inventory management.

Enter the Extendable Reaming HeadHow can end-users reduce capital costs while maintaining the ability to bore multiple raise diameters? The answer lies in the Sandvik RS530 extendable reaming head system. Designed specifically for projects with high demands for hole-size flexibility (as well as size/weight transport restrictions), the RS530 is a versatile, tailor-made solution for modern mining.

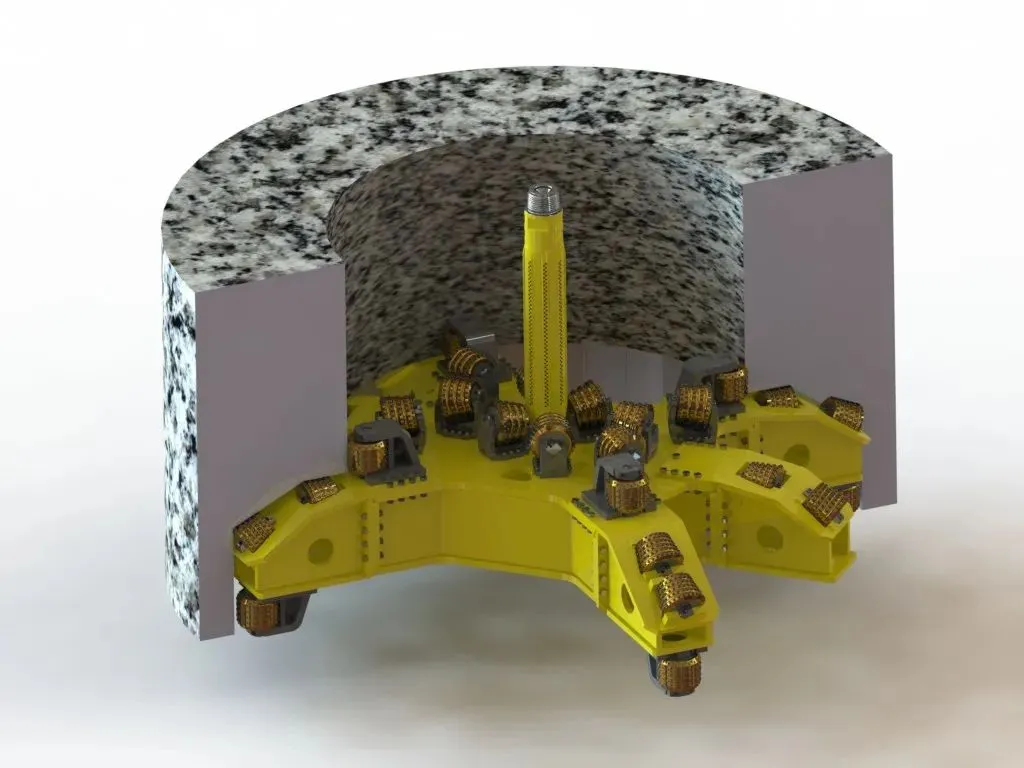

How the RS530 System WorksThe extendable system is built around a robust, universal base-head. Depending on the required diameter of the raise, operators can fit either four or six specialized segments to this base-head.

• One Head, Multiple Diameters: The defining advantage of the RS530 system is that it permits raises of several different diameters to be bored using one and the same base reaming head.

•

• Inventory Reduction: By purchasing one base-head and a selection of bolt-on segments, contractors can keep their equipment inventories to an absolute minimum, freeing up capital for other critical mining operations.

Logistical and Maintenance BenefitsBeyond cost savings, the RS530 offers the same logistical advantages as segmented heads. The segmentation allows the heavy reamer to be broken down and transported via small cages to the collaring site. Once there, it is assembled using standard tools.

Furthermore, maintenance is incredibly straightforward. With various stem-fit options (accommodating stem sizes from Ø280 to 381mm / 11-15”) and saddle options available, the system can be tailor-made to specific project needs. Because all segments, saddles, and cutters are attached by bolts, damaged components can be swapped out individually, preventing the entire head from needing replacement.

ConclusionIn a competitive mining landscape, efficiency and cost-control are everything. Extendable reaming heads like the Sandvik RS530 provide the ultimate combination of transportability, operational flexibility, and capital cost reduction, making them an indispensable tool for forward-thinking drilling contractors.
