Streamlining On-Site Maintenance: How bolted reaming head components Save Time and Money

Target Keywords: raise boring maintenance, bolted reaming head components, replace raise boring cutters, Sandvik reaming heads, easy service reaming head, raise boring stems and saddles.

The Nightmare of Underground Equipment MaintenanceIn the raise boring industry, machine downtime is one of the most significant threats to project profitability. When a cutter wears out or a saddle is damaged during the reaming process, the operation grinds to a halt. The real problem for end-users isn't that parts wear out—that is an expected reality of rock drilling—it is how difficult those parts are to replace.

Historically, some reaming heads utilized welded components. If a saddle was damaged, replacing it meant utilizing hot works (welding/Cutting) underground, which poses major safety risks, requires specialized labor, and causes massive delays.

The Shift to Bolted Components for Easy ServicingTo solve the end-user's maintenance headache, modern reaming heads, such as the Sandvik RS510, RS520, and RS530, have completely eliminated the need for complex underground welding for routine component replacement. Instead, they rely on a fully bolted component architecture.

Why Bolted Architecture is a Game-Changer:

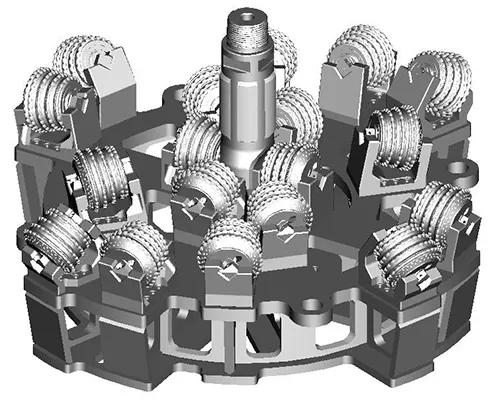

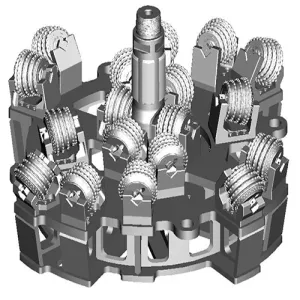

1. Quick and Easy Servicing: Every major wear part and structural connection on these reaming heads—including the central stem, the outer segments (on RS520/RS530 models), the cutter saddles, and the rotary cutters themselves—are attached to the base-head using high-tensile bolts. When a cutter is spent or a saddle needs replacing, a standard maintenance crew can unbolt the old part and bolt on the new one using standard tools.

2. Tailor-Made Customization: The bolted design makes these heads incredibly versatile. Because components can be swapped easily, the head can be tailor-made for different applications on the fly. For instance, operators can easily swap out the central stem to accommodate different drill string sizes (ranging from Ø228 to 381 mm / 9-15” depending on the head model), or change saddle configurations based on the rock hardness.

3. Enhanced Safety: By eliminating the need for hot works to replace saddles or stems, operators drastically reduce the risk of underground fires and eliminate the need for cumbersome welding permits and fume extraction setups at the collaring site.

ConclusionFor raise boring end-users, an equipment's value is measured not just by how fast it cuts, but by how easily it can be maintained. Reaming heads designed with fully bolted components ensure that maintenance is fast, safe, and easily manageable at the rock face. This minimizes downtime, reduces labor costs, and keeps your raise boring project on schedule and under budget.
