Introduction: The Hidden Vulnerability of Solid Tungsten Carbide Cutters

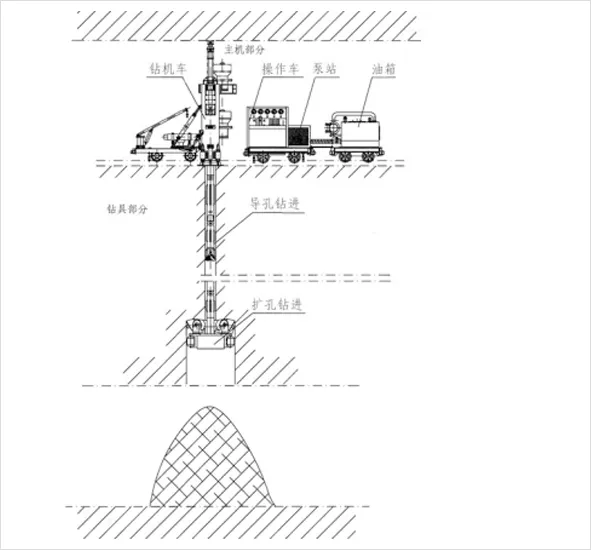

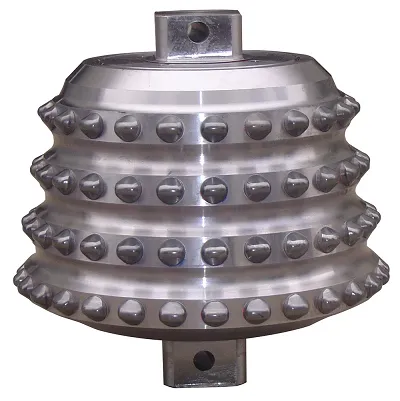

In the demanding discipline of raise boring, the spotlight is almost exclusively cast on the Cutting structure. Operators meticulously debate the merits of different solid tungsten carbide insert profiles, carbide grades, and kerf spacing. However, a solid tungsten carbide roller cone cutter is a synergistic assembly. The most robust, perfectly specified carbide inserts are entirely useless if the internal mechanical components supporting them fail.

For the raise boring end-user, premature bearing and seal failure represents a severe, often hidden pain point. Unlike insert wear, which is visible and generally predictable, a bearing failure can happen suddenly and catastrophically. When a bearing collapses under high thrust, the cutter stops rolling and locks up. As the Raise Boring Machine (RBM) continues to rotate the massive reamer head, the locked solid tungsten carbide cutter is dragged across the rock face. Within minutes, the friction grinds a massive flat spot into the steel cone, destroys the inserts, and can even compromise the reamer saddle. In worst-case scenarios, a catastrophic bearing failure leads to the cone detaching completely and falling down the shaft, creating a severe safety hazard and potentially destroying the pilot hole string.

Addressing this pain point requires a shift in focus from the external rock-cutting interface to the internal engineering of the tool. This comprehensive guide dissects the root causes of roller cutter bearing failure, evaluates modern RBM cutter seals, and outlines actionable strategies for drilling tool thermal management in high-thrust environments.

Anatomy of a Catastrophe: The Path to Bearing Failure

To prevent premature failure, operators must understand the precise sequence of events that leads to a cutter locking up. It is rarely a sudden, spontaneous event; rather, it is a cascading failure typically triggered by one of three primary culprits: mechanical overload, thermal degradation, or seal breach.

1. Mechanical Overload (Thrust Beyond Limits)

When boring through ultra-hard rock, operators naturally apply higher thrust to force the solid tungsten carbide inserts into the rock face. High-thrust roller cutters are designed to withstand immense axial and radial loads, but they have finite limits. If the applied thrust exceeds the dynamic load rating of the internal bearings, the rolling elements (rollers or balls) will breach the microscopic oil film separating them from the bearing races. This metal-on-metal contact causes micro-welding and flaking (spalling) of the bearing steel. Once the bearing geometry is compromised, friction skyrockets, leading to rapid, irreversible failure.

2. Thermal Breakdown of Lubrication

The internal workings of a roller cone cutter are entirely dependent on a highly specialized lubricating grease. This grease serves a dual purpose: it reduces friction between the rolling elements and acts as a medium to transfer heat away from the bearing surfaces. However, as high thrust and high RPM generate excessive friction, the internal temperature of the cutter spikes. If the temperature exceeds the drop point of the grease (the point at which the oil separates from the thickener), the lubrication loses its viscosity. The grease turns into a thin liquid and often bypasses the seals, leaving the bearings completely dry.

3. Seal Breach and Abrasive Ingress

The absolute most common cause of roller cutter bearing failure in raise boring is the ingress of drilling fluid and rock dust into the bearing cavity. The bearings operate in a hostile environment surrounded by highly abrasive rock slurry. The only barrier protecting the precision-engineered bearings is the seal assembly. If the seal fails, abrasive silica particles mix with the internal grease, creating a highly effective lapping compound. This compound grinds away the bearing races and rollers in a matter of hours, leading to severe wobbling of the cone and eventual lock-up.

Bearing Architectures for High-Thrust Roller Cutters

Understanding the internal architecture of your solid tungsten carbide roller cone cutters is vital for setting accurate operational parameters. The bearings inside an RBM cutter must handle two types of forces: radial loads (the force pushing up against the cutter from the rock) and axial/thrust loads (the force pushing sideways along the axis of the cutter pin due to the cone’s angled position).

Tapered Roller Bearings

The gold standard for high-thrust roller cutters in raise boring is the tapered roller bearing. Unlike cylindrical rollers, tapered rollers are angled.

• The Advantage: This angled geometry allows them to handle massive radial and axial loads simultaneously. When thrust increases, the tapered rollers are wedged tighter into their races, preventing internal play and maintaining the precise alignment of the cone.

• The Vulnerability: Tapered roller bearings require exact pre-loading (internal tension) during manufacturing. If subjected to extreme thermal expansion, this pre-load can tighten further, causing the bearing to bind.

Journal (Friction) Bearings

In some compact cutter designs or specific soft-rock applications, manufacturers utilize journal bearings. Instead of rolling elements, a journal bearing relies on a highly polished pin rotating inside a special alloy bushing, separated by a microscopic film of grease.

• The Advantage: Because there are no rolling elements taking up space, the load-bearing surface area is massive. Journal bearings can take incredible impact loads that would shatter a roller bearing.

• The Vulnerability: Journal bearings generate significantly more heat than roller bearings due to fluid friction. They require absolute perfection in the seal; the slightest loss of grease or ingress of dirt will cause immediate galling and seizure. They are highly sensitive to high RPMs.

Actionable Insight for End-Users: Ensure your procurement specifications match the application. For deep, large-diameter shafts in hard rock requiring maximum thrust, insist on cutters equipped with high-capacity tapered roller bearings.

The Critical Barrier: RBM Cutter Seals

The seal is the Achilles' heel of the solid tungsten carbide roller cone cutter. The evolution of RBM cutter seals is a constant battle against pressure, heat, and abrasion.

Elastomer (Rubber) Seals

Historically, cutters used specialized O-rings or lip seals made from advanced elastomers like Hydrogenated Nitrile Butadiene Rubber (HNBR).

• How They Work: They rely on compression against the rotating steel surfaces to keep grease in and dirt out.

• Why They Fail: Elastomers are highly susceptible to thermal degradation. In high-thrust environments, friction raises the temperature of the steel housing. Once the elastomer exceeds its thermal limit (often around 150°C to 175°C), it becomes brittle, loses its elasticity, and cracks. Additionally, fine rock dust can pack under the lip of the seal, lifting it off the steel and allowing slurry to flood the bearing.

Metal Face Seals (Mechanical Seals)

To combat the shortcomings of elastomers in high-thrust roller cutters, the industry standard has shifted to metal face seals.

• How They Work: A metal face seal consists of two perfectly flat, highly polished alloy steel rings. One ring is stationary on the cutter pin; the other rotates with the cone. A rubber O-ring acts merely as a spring, pressing the two metal faces together with exact tension. The microscopic gap between the flat metal faces allows a tiny amount of internal grease to seep through, lubricating the faces, but is too tight to allow rock particles to enter.

• Why They Fail: While vastly superior in abrasive environments, metal face seals are incredibly sensitive to pressure differentials and shock loading. In a deep shaft filled with bailing water, the external hydrostatic pressure can be massive.

Pressure Equalization Systems

To prevent external hydrostatic pressure from crushing the metal face seals inward, premium solid tungsten carbide roller cone cutters feature internal pressure compensation systems. A flexible rubber diaphragm is located inside the grease reservoir. As external fluid pressure increases, it presses on the diaphragm, which in turn pressurizes the internal grease to exactly match the external pressure.

• The End-User Pitfall: If a cutter is not properly purged of air during greasing at the factory or rebuild center, the air bubble will compress under pressure in the shaft. The internal grease pressure will not equalize, the metal face seal will collapse inward under the weight of the water column, and the cutter will instantly flood with slurry.

Drilling Tool Thermal Management in Action

Preventing bearing and seal failure ultimately boils down to effective drilling tool thermal management. Heat is the enemy of grease viscosity, seal integrity, and bearing metallurgy.

The Role of Flushing Fluids in Cooling

The bailing fluid (water) pumped down the drill string serves two purposes: removing rock cuttings and cooling the solid tungsten carbide cutters.

• The "Vapor Lock" Danger: In high-thrust, hard-rock drilling, the friction at the cutter-rock interface is extreme. If the water flow rate is insufficient, the water immediately contacting the hot tungsten carbide and steel cone will boil into steam. This creates a localized "vapor jacket" around the cutter. Steam is a terrible conductor of heat compared to liquid water. Once vapor lock occurs, the cutter temperature skyrockets exponentially, destroying the seals in minutes.

• Mitigation: End-users must monitor fluid return volumes and temperatures. If the return water is noticeably hot, or if bailing pressure fluctuates, increase the pump flow rate immediately to break the vapor jacket and restore liquid cooling to the cutters.

Thrust/RPM Ratios and Heat Generation

Heat generation in a roller cutter is a product of Load (Thrust) and Velocity (RPM).

• High Thrust + Low RPM = High mechanical stress, moderate heat.

• High Thrust + High RPM = Extreme mechanical stress, extreme heat. If you are struggling with low Rate of Penetration (ROP) in hard rock (as discussed in Article 2), and you increase both thrust and RPM, you are creating a thermal death spiral for the cutter bearings.

Best Practice: In hard rock requiring high thrust, operators must proportionally reduce the RPM to keep internal bearing temperatures within safe limits. This allows the solid tungsten carbide inserts to crush the rock without exceeding the thermal limits of the seals and grease.

Proactive Operational Tactics and Condition Monitoring

Reactive maintenance—waiting for a cutter to stop spinning before replacing it—is an expensive strategy. Preventing premature bearing failure requires proactive operational monitoring.

1. Torque Fluctuation Analysis

The RBM's rotary torque gauge is the operator's best diagnostic tool. A smooth, steady torque reading indicates the solid tungsten carbide cutters are rolling freely and crushing rock efficiently. If the torque gauge begins to spike erratically or show sudden, sharp increases, it is a primary indicator that one or more cutters are binding.

• Action: Do not attempt to "push through" erratic torque spikes. This usually means a bearing is in the early stages of spalling or a seal has just failed and debris is entering the bearing. Stop thrusting, raise the reamer off the face, and allow the cutters to cool and flush. If the torque spikes return upon resuming drilling, a cutter has likely failed, and a trip is required.

2. The "Touch Test" During Reamer Maintenance

Whenever the reaming head is accessible (at the collar of the shaft or during a planned maintenance trip), the maintenance crew must manually inspect every cutter.

• A healthy bearing will spin smoothly with a distinct, viscous resistance caused by the thick internal grease.

• If a cutter spins entirely freely like a bicycle wheel, the grease has leaked out or thermally degraded. It will fail on the next pass.

• If a cutter feels gritty, catches, or requires a pry bar to turn, the bearing has already failed. Furthermore, check for any lateral "play" or wobble in the cone. Any visible wobble means the internal tapered bearings have lost their pre-load or have begun to disintegrate.

Conclusion: Protecting the Core of Your Investment

For the raise boring end-user, the solid tungsten carbide roller cone cutter represents a significant upfront cost, but a bearing failure mid-shaft represents an exponential operational loss. Purchasing cutters with highly durable carbide inserts is only part of the equation.

By understanding the load limitations of tapered roller bearings, the vulnerabilities of metal face seals, and the critical importance of drilling tool thermal management, operators can adjust their RBM parameters to protect the internal mechanics of the tool. Managing thrust-to-RPM ratios, ensuring rigorous bailing fluid flow to prevent vapor lock, and reacting instantly to torque anomalies will drastically reduce the incidence of premature bearing failures. Ultimately, safeguarding the bearings and seals is how you guarantee that your expensive solid tungsten carbide inserts have the opportunity to reach their maximum cutting lifespan, keeping your raise boring project on schedule and under budget.
