Optimizing Rate of Penetration (ROP) in Ultra-Hard Rock: A Deep Dive into Roller Cone Cutter Kinematics and Insert Profiles

Target Audience: Raise Boring Machine (RBM) Operators, Mine Planners, Geotechnical Engineers, and Tunneling Contractors.Target Keywords: Raise boring rate of penetration, hard Rock Drilling Tools, RBM Cutting efficiency, spherical vs. conical inserts, roller cone cutter kinematics, rock mass strength RBM, solid tungsten carbide cutter.

Introduction: The Bottleneck of Ultra-Hard Rock Excavation

In the realm of underground mining and civil tunneling, the Raise Boring Machine (RBM) is prized for its ability to excavate shafts safely, accurately, and without the need for explosives. However, this mechanized advantage frequently hits a brutal bottleneck: ultra-hard rock. When an RBM encounters geological formations with Unconfined Compressive Strengths (UCS) exceeding 200 MPa—such as basalts, granites, quartzites, or diabase—the operation often slows to a crawl.

For the end-user, low Rate of Penetration (ROP) is a severe pain point. Slow drilling directly translates to escalating shift costs, delayed project milestones, prolonged energy consumption, and increased overhead. A raise that was budgeted for a 30-day completion can easily stretch to 60 days if the ROP drops from an anticipated 1.5 meters per hour to 0.5 meters per hour.

Often, contractors react to low ROP by simply pushing the machine harder—increasing thrust and RPM in an attempt to brute-force their way through the rock. This inevitably leads to catastrophic tool failure, exacerbating the problem. The true solution to overcoming low drilling efficiency in hard rock does not lie in applying blind force, but in optimizing the complex interaction between the rock face and the cutting tool. This comprehensive guide explores how mastering roller cone cutter kinematics and selecting the precise solid tungsten carbide insert profile can drastically optimize your RBM’s cutting efficiency.

The Physics of Rock Breakage in Raise Boring

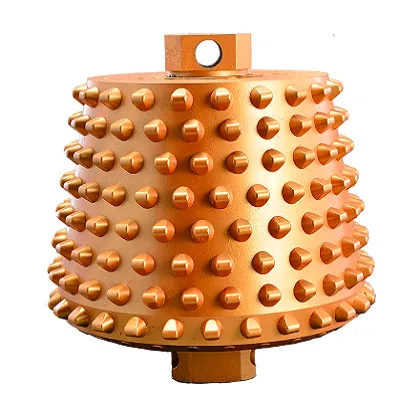

To optimize ROP, one must first understand precisely how a solid tungsten carbide roller cone cutter fractures rock. Unlike a Drill Bit boring through wood or metal via continuous shearing, a roller cone cutter relies on high-pressure indentation and brittle fracture.

1. The Indentation Phase (Hertzian Contact Stress)

As the reamer head rotates, the thrust of the RBM forces a single tungsten carbide insert into the rock face. The contact area is minuscule, which concentrates the thrust load, creating immense localized pressure known as Hertzian contact stress. When this applied pressure exceeds the compressive strength of the rock directly beneath the insert, the rock yields, forming a localized "crushed zone" of powdered rock dust.

2. The Propagation Phase (Radial Cracking)

Rock is generally very strong in compression but weak in tension. As the insert is forced deeper into the crushed zone, it displaces the material outward. This lateral displacement creates immense tensile stresses in the surrounding intact rock. Micro-cracks begin to propagate outward and downward from the crushed zone.

3. The Spalling Phase (Chip Formation)

The ultimate goal of the cutter is not merely to crush rock into powder (which is highly inefficient and wastes energy), but to generate large rock chips. When the radial cracks generated by one insert intersect with the cracks generated by a neighboring insert on an adjacent cutting track (the "kerf"), the rock between the two tracks undergoes tensile failure. A large chip of rock spalls off the face.

Actionable Insight for End-Users: Maximum ROP is achieved when the cutter generates the largest possible rock chips with the minimum specific energy. If your cuttings are emerging as fine powder rather than distinct chips, your RBM is operating inefficiently in the "grinding" phase, and your ROP will suffer. You must alter either your operating parameters (Thrust/RPM) or your cutter profile.

Insert Profiles: The Tip of the Spear

The geometry of the solid tungsten carbide insert is the single most critical factor in initiating rock fracture. The profile determines how the impact energy is transferred into the rock mass. Selecting the wrong profile for hard rock guarantees poor cutting efficiency.

Spherical (Dome) Inserts: The Shield of Durability

Spherical inserts feature a smooth, rounded dome shape.

• Mechanics: Because they have no sharp edges, they distribute the thrust load over a wider area. This makes them incredibly robust and highly resistant to impact spalling and chipping.

• The ROP Trade-off: The wider footprint means that a significantly higher thrust force is required to exceed the rock's compressive strength and initiate the crushed zone. In ultra-hard rock (>250 MPa), spherical inserts are often the only option that will survive without breaking. However, their blunt nature inherently limits ROP.

• Application: Best reserved for the hardest, most abrasive, or highly fractured rock formations where tool survival is prioritized over raw speed.

Conical Inserts: The Spearhead of Penetration

Conical inserts have a tapered profile ending in a rounded point.

• Mechanics: The sharper point concentrates the thrust load into a much smaller contact area, generating much higher Hertzian stresses for the same amount of machine thrust. This allows the insert to penetrate deeper into the rock face, generating longer radial cracks and larger rock chips.

• The ROP Trade-off: Conical inserts yield a significantly higher Rate of Penetration compared to spherical inserts. However, the tapered profile makes them susceptible to bending stresses and impact breakage. If used in fractured ultra-hard rock, the tips can easily snap off.

• Application: The ideal choice for medium-to-hard, homogeneous rock formations (100 - 200 MPa) where maximizing ROP is critical and the risk of severe impact shocks is minimal.

Ballistic (Parabolic) Inserts: The Strategic Compromise

Ballistic inserts feature a parabolic curve that is blunter than a cone but sharper than a sphere.

• Mechanics: They are designed to offer a middle ground, providing better penetration than a dome insert while retaining more structural mass to resist breaking than a conical insert.

• Application: Excellent for variable geology where the RBM might pass through bands of medium rock and hard rock. They offer a respectable ROP without the extreme fragility of purely conical profiles.

•

Chisel and Wedge Inserts: The Shearing Action

Chisel inserts look like small wedges or flat-head screwdrivers.

• Mechanics: Unlike domes or cones that rely strictly on downward crushing, chisels are designed to gouge and shear the rock. They require the cutter kinematics to incorporate a degree of lateral dragging (skidding).

• Application: Highly effective for achieving maximum ROP in softer formations (shales, soft limestones, coal). They must never be used in ultra-hard rock, as the extreme resistance will instantly shear the carbide wedges off the cutter body.

Cutter Kinematics: True Rolling vs. Skidding

Insert profile is only half of the ROP equation. The other half is cutter kinematics—how the roller cone moves across the rock face. The design of the cutter itself dictates this movement, and it must be matched to the rock hardness.

The Concept of Offset and Skidding

If a roller cone cutter is mounted on an axis that perfectly intersects the center of the reaming head, it will experience "true rolling." The inserts will press directly down into the rock and lift directly out, with zero lateral movement.

However, many cutters are designed with an "offset"—their axis does not perfectly align with the center of the reamer.

• What Offset Does: As an offset cutter rolls, the geometric misalignment forces the cone to skid or drag slightly across the rock face during its rotation.

• The Impact on ROP: In softer rock formations, this skidding action is highly beneficial. The dragging motion mechanically scrapes and shears the rock away, drastically increasing the volume of rock removed per rotation and skyrocketing the ROP.

• The Danger in Hard Rock: In ultra-hard rock, the rock simply will not yield to lateral shearing. If you use a high-offset cutter in hard granite, the tungsten carbide inserts will not scrape the rock; instead, the rock will aggressively grind away the tungsten carbide.

Actionable Insight for End-Users: If you are struggling with low ROP and rapid tool wear in ultra-hard rock, check the design of your cutters. High-offset cutters will destroy themselves in hard rock. For hard rock efficiency, you must utilize cutters designed for true rolling (zero offset) to ensure all machine energy is directed vertically into crushing, rather than wasted in horizontal friction.

The "Drilling Threshold" and Thrust Optimization

A common misconception among RBM operators is that ROP increases linearly with thrust. In reality, rock drilling follows a non-linear curve governed by the "drilling threshold."

1. Below the Threshold (The Grinding Phase): If the thrust applied to the cutter is too low to force the solid tungsten carbide inserts into the rock to a depth that initiates chip spalling, the cutter merely grinds the surface. ROP is abysmal, and the abrasive wear on the inserts is extreme. The machine is wasting energy turning rock into dust.

2. Crossing the Threshold (The Chipping Phase): Once the thrust exceeds the critical threshold, the inserts penetrate sufficiently to connect their radial cracks. The excavation mechanism shifts from grinding to chipping. At this exact point, ROP spikes dramatically with only a marginal increase in thrust.

3. Beyond the Threshold (The Floundering Phase): If operators continue to add thrust well beyond the optimal chipping phase, the cutters are forced too deeply into the rock. The space between the inserts (the cone shell) bottoms out against the rock face. The cutters can no longer roll efficiently; they begin to bind and drag. ROP plateaus and then plummets, while the immense torque load threatens to stall the RBM motors or snap the drill string.

Actionable Insight for End-Users: Overcoming slow ROP in hard rock requires finding the exact drilling threshold. This is done through a structured "drill-off" test. Start with low thrust and low RPM. Gradually increase the thrust while monitoring the ROP and torque gauges. You will notice a distinct point where the ROP suddenly jumps—you have crossed the threshold. Lock in your thrust slightly above this point. If you must apply so much thrust to cross the threshold that you exceed the cutter's bearing load limits, you have the wrong insert profile; you need sharper (conical or ballistic) inserts to concentrate the force.

Spacing and Kerf Distance: The Macro-Level Optimization

The efficiency of solid tungsten carbide cutters is not determined in isolation; it depends heavily on their arrangement on the reamer head.

The distance between the concentric tracks cut by the inserts is known as the kerf spacing.

• Too Wide: If the cutters are spaced too far apart, the radial cracks generated by adjacent cutters will not intersect. The rock between the tracks (the "ridge") will not spall off. The cutters will dig deep, narrow trenches until the reamer head bottoms out on the uncut ridges, instantly killing the ROP.

• Too Narrow: If the cutters are spaced too closely, they are over-crushing the rock. Energy is wasted breaking rock that is already fractured, resulting in smaller chips, higher energy consumption, and lower overall efficiency.

While end-users cannot typically change the saddle placement on a pre-manufactured reamer head, understanding this concept is vital during the procurement phase. When purchasing a new reamer for a specific hard-rock project, consult with the manufacturer about the optimal kerf spacing for the expected UCS of the rock mass. Harder rocks generally require tighter kerf spacing to ensure crack intersection.

Conclusion: Engineering Your Way Out of the Hard Rock Bottleneck

Operating a Raise Boring Machine in ultra-hard rock is one of the most demanding tasks in underground engineering. When the ROP plummets, the instinctive reaction is often to apply more brute force, which only leads to catastrophic cutter failure, further downtime, and blown budgets.

Addressing the pain point of low cutting efficiency requires a shift from operational guesswork to geotechnical engineering. By understanding the mechanics of Hertzian contact stress, matching solid tungsten carbide insert profiles (spherical vs. conical) to the rock's compressive strength, and ensuring cutter kinematics (offset) align with the formation hardness, end-users can unlock the true potential of their machinery.
