In the highly specialized field of mechanized rock excavation, the Raise Boring Machine (RBM) represents a massive capital and operational investment. Whether utilized for excavating ventilation shafts, ore passes, or penstocks in hydroelectric projects, the efficiency of an RBM hinges almost entirely on the performance of the Cutting tools mounted on the reamer head. Among these, the solid tungsten carbide roller cone cutter is the primary interface between the machine and the rock mass.
For end-users, the most critical pain point is not necessarily the initial purchase price of these cutters, but rather the cascading costs of unplanned downtime. When a roller cone cutter fails prematurely—whether through insert spalling, abrasive wear, or bearing collapse—the entire raise boring operation halts. Lowering a massive reaming head down a shaft to replace a single damaged cutter is a logistical nightmare that consumes expensive shift hours, delays project critical paths, and introduces severe safety risks for maintenance personnel.
Maximizing the lifespan of solid tungsten carbide roller cone cutters is therefore not just a maintenance objective; it is a core financial strategy. This comprehensive guide explores the metallurgical principles of Tungsten Carbide Inserts (TCI), the mechanisms of cutter wear, and actionable operational strategies to extend the operational life of your RBM Cutters.
To maximize the lifespan of a roller cone cutter, users must first understand the material science behind the solid tungsten carbide inserts doing the actual work. Tungsten carbide (WC) is exceptionally hard, but it is inherently brittle. To make it suitable for the high-impact environment of raise boring, it is sintered with a metallic binder, predominantly cobalt (Co).
The performance of a TCI cutter is dictated by the precise ratio of tungsten carbide to cobalt, as well as the grain size of the carbide particles. This creates a critical trade-off that end-users must navigate based on their specific rock conditions:
Low Cobalt / Fine Grain: Produces an insert with extreme hardness and phenomenal resistance to abrasive wear. However, it lacks fracture toughness. If used in fractured, vuggy, or highly variable rock, these inserts are prone to catastrophic chipping and spalling.
High Cobalt / Coarse Grain: Yields an insert with higher fracture toughness, capable of absorbing severe impact shocks. The compromise is a lower resistance to abrasion, meaning the inserts will wear flat much faster in highly siliceous, abrasive rock types like quartzite.
Actionable Insight for Users: Premature insert wear is rarely a manufacturing defect; it is almost always a mismatch between the cutter's metallurgical profile and the rock mass. When ordering solid tungsten carbide roller cone cutters, contractors must provide accurate geological data (Unconfined Compressive Strength [UCS], Cerchar Abrasivity Index [CAI], and Rock Quality Designation [RQD]) to the manufacturer to ensure the correct grade of carbide is specified.
To prevent premature cutter failure, operators must be able to identify the root cause of the wear they observe. Wear on solid tungsten carbide roller cone cutters generally falls into four distinct categories:
Abrasive wear occurs when the rock chips and dust are harder than the binder material of the tungsten carbide. As the cutter rolls over the rock face, quartz and other highly abrasive minerals gouge out the softer cobalt binder. Once the binder is removed, the tungsten carbide grains are left unsupported and are easily swept away by subsequent impacts.
Visual Indicator: Inserts appear rounded, flattened, or "polished," losing their distinct profile.
Mitigation: Ensure adequate bailing/flushing velocity to remove abrasive cuttings from the face quickly. Select a cutter with a lower cobalt content if impact risks are low.
Often observed in softer, "sticky" rock formations (such as certain shales or clays), adhesive wear happens when rock particles weld themselves to the heated surface of the tungsten carbide insert. As the cutter continues to rotate, these welded particles are forcibly torn away, pulling microscopic fragments of the carbide insert with them.
Visual Indicator: The insert surface appears rough, pitted, and irregularly textured.
Mitigation: Optimize fluid flushing systems to keep the cutter surface clean and cool. Adjust RPM and thrust to prevent the cutter from "skidding" across the rock face.
This is a catastrophic failure mode highly relevant to raise boring end-users operating in fractured rock. When the RBM encounters voids, fault zones, or transitions between soft and ultra-hard rock, the cutter experiences sudden, massive spikes in impact loading.
Visual Indicator: Large chunks of the carbide insert are broken off, or the insert is sheared flush with the steel cone body.
Mitigation: In fractured geology, operators must reduce the rate of penetration (ROP) and lower the thrust force. Utilizing a more robust, hemispherical (dome) insert profile with higher cobalt content provides the necessary toughness to survive these impacts.
During the crushing action, intense friction generates localized heat on the insert tip. As the cutter rotates, the insert is immediately cooled by the flushing medium (water or air). This rapid, cyclic heating and cooling causes the outer skin of the carbide to expand and contract, eventually creating a network of micro-cracks known as heat checking.
Visual Indicator: A fine "spiderweb" of microscopic cracks on the surface of the insert, which eventually leads to macro-chipping.
Mitigation: Maintain consistent and adequate coolant flow. Never restart fluid circulation suddenly if the cutters have been running dry and have overheated; allow them to cool slowly to prevent thermal shock.
While selecting the right cutter is the first step, how the Raise Boring Machine is operated dictates the final lifespan of the tooling. End-users can significantly reduce replacement costs by optimizing the following operational parameters.
The relationship between thrust (weight on cutter) and Rotary Speed (RPM) is the heartbeat of RBM efficiency.
Under-thrusting (Skidding): If the thrust force applied by the machine is insufficient to overcome the compressive strength of the rock, the solid tungsten carbide inserts will not penetrate. Instead of rolling and crushing, the cutter will drag or "skid" across the rock face. This causes extreme abrasive wear on the inserts and flat-spotting on the steel cone, ruining the cutter in a fraction of its intended lifespan.
Over-thrusting: Applying too much thrust forces the inserts too deeply into the rock, placing immense sheer stress on the carbide and overloading the internal bearings. This leads to broken inserts, blown seals, and immediate bearing failure.
RPM Control: In harder rock formations, lower RPMs combined with optimal thrust allow the inserts sufficient time to penetrate and crush the rock. High RPMs in hard rock increase impact fatigue and accelerate thermal wear.
Best Practice: Operators should conduct "drill-off" tests at the beginning of a pilot hole or reaming pass. By incrementally adjusting thrust and RPM and monitoring the resulting ROP, operators can find the "sweet spot" where the cutter is crushing efficiently without excessive vibration.
A solid tungsten carbide roller cone cutter cannot perform effectively if it is re-crushing previously excavated rock. Inadequate flushing leads to a condition known as "re-grinding."
When cuttings are not efficiently evacuated from the cutting face, they form a thick, abrasive paste. The cutter is forced to expend energy grinding this paste rather than attacking fresh rock. This not only destroys the penetration rate but also acts as an abrasive grinding compound that rapidly erodes the steel cone body, leading to "insert drop-out" (where the steel supporting the carbide insert wears away, causing the insert to fall out intact).
Best Practice: Monitor fluid returns continuously. If the return fluid is overly thick or if the machine begins to experience high torque fluctuations, immediately increase fluid flow and consider raising the reamer slightly to clear the face.
Wear rates are not uniform across the reaming head. Cutters positioned on the outer gauge experience the highest linear velocity and travel significantly further than the cutters near the center stem. Consequently, gauge cutters wear out much faster.

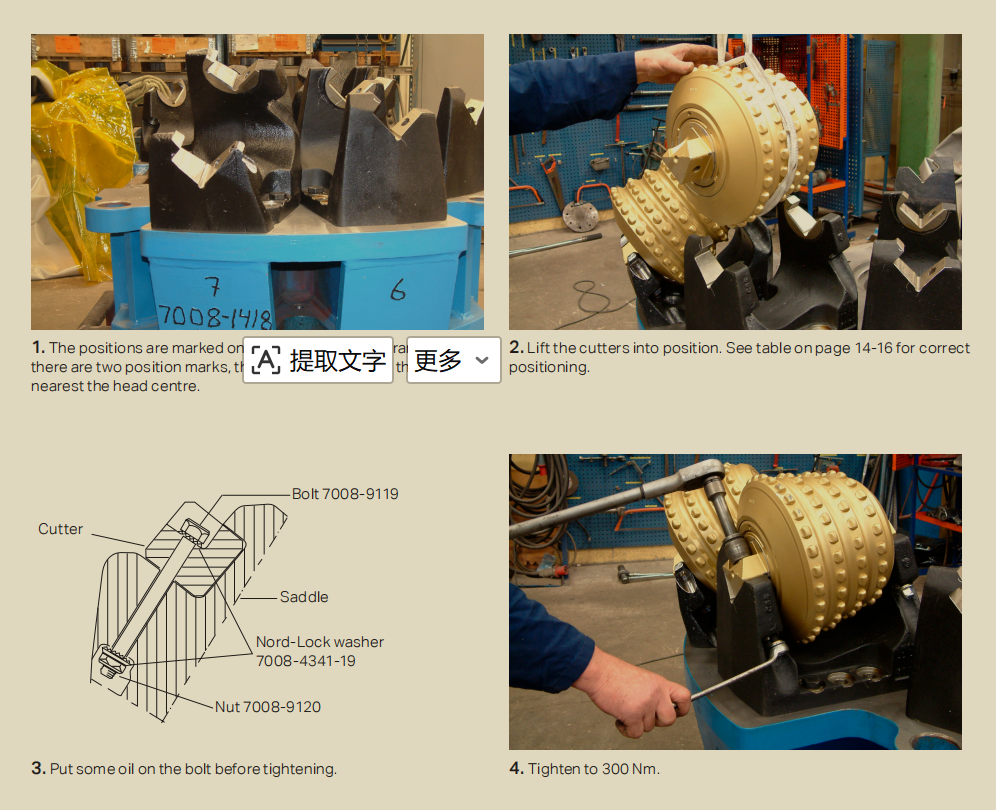

Best Practice: Implement a strict cutter rotation protocol. During routine maintenance stops, operators should inspect all cutters. Depending on the manufacturer's recommendations, moving partially worn cutters from the high-velocity outer positions to the inner positions can extract the maximum possible life from each unit before full replacement is required.
A reactive approach to cutter maintenance is the leading cause of costly RBM downtime. Implementing a proactive inspection schedule allows operators to identify and rectify minor issues before they cascade into catastrophic failures.
Bearing Seal Inspection: The solid tungsten carbide inserts can only do their job if the bearings allow the cone to turn freely. RBM cutters utilize highly specialized elastomeric or metal face seals to keep lubricating grease in and abrasive rock dust out. Check the seals for any signs of weeping grease or ingress of dirt. A failed seal will destroy a bearing within hours.
Tracking Cone Rotation: Manually spin each cutter during inspections. The cone should rotate smoothly with some resistance (due to the viscous grease). If a cone spins entirely freely with no resistance, it has likely lost its grease. If it feels gritty or seizes, bearing failure is imminent.
Insert Wear Measurement: Use standardized templates or calipers to measure insert wear. Do not rely on visual estimation. By logging the wear rate per meter drilled, project managers can accurately predict when a cutter will reach the end of its usable life, allowing them to schedule replacement during planned maintenance windows rather than suffering mid-shift breakdowns.
For the raise boring end-user, viewing solid tungsten carbide roller cone cutters merely as bulk consumables is a costly mistake. By understanding the metallurgy of the inserts, diagnosing wear patterns correctly, optimizing thrust and RPM, and enforcing rigorous maintenance protocols, contractors can dramatically extend cutter lifespans.
This proactive approach minimizes the dreaded unplanned downtime, accelerates the overall project timeline, and significantly reduces the total cost per meter drilled. In the unforgiving environment of underground hard rock excavation, the longevity of your roller cone cutters is the ultimate metric of operational success.
