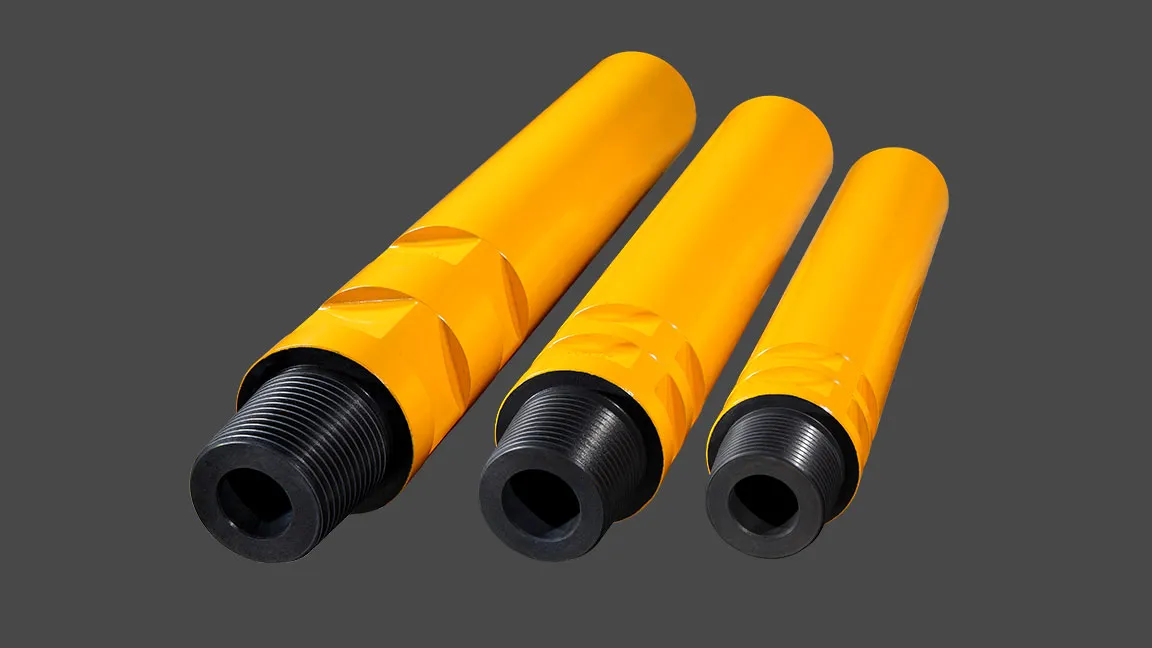

DI22 Raise Drill Rods: The Engineering Secrets Behind Maximizing Torque and Longevity

In the world of high-stakes underground mining, the drill string is the singular lifeline of your operation. When you are tasked with creating massive ventilation shafts, ore passes, or slot raises in the demanding geological conditions of Western Australia or other global mining hubs, the last thing your team needs is a failure in the drill string.

For mining operations pushing the boundaries of depth and hardness, standard equipment is no longer enough. This is where the DI22 Raise Drill Rod takes center stage. Engineered for maximum torque transmission and resilience against extreme abrasive environments, the DI22 is not just a tool; it is a critical component for operational uptime.

In this article, we peel back the layers of metallurgy, design, and manufacturing precision that make the DI22 the preferred choice for performance-driven mining contractors.

The Metallurgical Foundation: Beyond Standard Steel

The primary reason for drill string failure in raise boring is often fatigue induced by cyclic loading and high-torque stress. Most standard rods fail because their material properties cannot withstand the extreme torsional forces required in high-UCS (Unconfined Compressive Strength) rock formations.

Our DI22 rods are forged from proprietary, high-strength alloy steel, specifically selected for its:

• Superior Yield Strength: Capable of handling the immense rotational torque exerted by modern, heavy-duty raise boring rigs.

• Impact Toughness: Designed to withstand the vibrational shocks common in hard-rock drilling, preventing brittle fractures that often plague low-grade alternatives.

• Uniform Hardness: Through an advanced heat-treatment process, we ensure consistent hardness from the surface to the core, minimizing the risk of deep-seated stress cracks.

Engineering the Thread: The Solution to Anti-Galling

One of the most persistent frustrations for site managers is "thread galling." When joints become fused due to friction and high heat, the resulting downtime—or the necessity of Cutting off a section of the string—can cost tens of thousands of dollars in a single shift.

The DI22 features a precision-engineered, thickened joint design. Our approach to combating galling is twofold:

1. Precision Machining: By utilizing CNC machining with tolerances down to the micron level, we ensure perfect contact profiles between the pin and box. This maximizes surface-to-surface engagement, distributing the torque load evenly and preventing stress concentrations that lead to galling.

2. Proprietary Thread Coatings: Each DI22 rod is treated with a specialized, high-temperature anti-friction coating. This acts as a physical barrier against metal-on-metal contact during the intense "make-and-break" cycles typical in underground mining.

Stability: The Silent Partner in Precision Drilling

A drill string is only as good as its weakest link. In deep raise boring, hole deviation is a silent profit killer. Even a small degree of deviation can lead to missed targets, re-drilling costs, and compromised structural integrity of the final shaft.

Our DI22 Stabilizers are designed to integrate seamlessly into your drill string, providing the necessary rigidity to maintain a true vertical path. Key features include:

• Wear-Resistant Hardfacing: The stabilizer pads are embedded with high-grade tungsten carbide inserts, specifically calibrated to withstand the abrasive nature of hard, crystalline rock.

• Optimized Geometry: The spiral configuration of our stabilizer pads allows for efficient cuttings evacuation, ensuring that the drill string remains centralized without causing excessive hydraulic resistance.

Why Mining Leaders Choose DI22 for High-UCS Formations

Whether you are operating in the granite-heavy belts of Western Australia or the abrasive ore bodies found in other parts of the world, you need equipment that performs predictably.

The DI22 system is built to minimize the “uncertainty factor” in your project:

• Reducing Unscheduled Downtime: By engineering out common failure points (fatigue, galling, and deviation), we keep your machine turning longer.

• Compatibility: Our rods are designed for universal compatibility with major industry-standard raise boring rigs, ensuring a seamless transition into your existing fleet.

• Reliability: We don’t just supply parts; we supply the peace of mind that comes from knowing your equipment is backed by rigorous quality control and technical expertise.

Conclusion: Investing in Your Operation’s Future

In an industry where every meter drilled counts toward the bottom line, your choice of equipment is a strategic decision, not a commodity purchase. The DI22 Raise Drill Rods and Stabilizers represent a commitment to engineering excellence and a refusal to compromise on performance.

Are you ready to optimize your raise boring efficiency and significantly reduce your Cost-per-meter?

Contact our global engineering team today to discuss your specific geological requirements. Whether you need a standard setup or custom-engineered solutions for extreme rock conditions, we are here to ensure your next shaft is a success.
