Optimizing Rate of Penetration (ROP) in Ultra-Hard Rock: Kinematics and Insert Profiles for RBM Cutters

Executive Summary (Key Takeaways)

• The Drilling Threshold: ROP is not linearly proportional to thrust. Operators must surpass the specific compressive strength of the rock (e.g., >250 MPa) to transition from inefficient "grinding" (ROP < 0.4 m/hr) to optimal brittle "chipping" (ROP 1.2+ m/hr).

• Profile-to-Strength Matching: Conical inserts maximize ROP in medium rock (100–180 MPa) but suffer catastrophic tip failure in ultra-hard rock. For UCS exceeding 200 MPa, transitioning to ballistic or spherical profiles sacrifices 15-20% raw ROP but increases tool survivability by over 300%.

• Kinematic Alignment: In rocks exceeding 200 MPa, cutter offset must be strictly zero. High-offset cutters rely on lateral skidding, which destroys tungsten carbide inserts in hard rock. "True rolling" kinematics direct 100% of machine thrust into vertical Hertzian contact stress.

The Financial Bottleneck of Ultra-Hard Rock Excavation

In mechanized underground mining and civil tunneling, the Raise Boring Machine (RBM) is prized for excavating shafts safely and accurately. However, this mechanized advantage frequently hits a brutal bottleneck: ultra-hard rock. When an RBM encounters geological formations with Unconfined Compressive Strengths (UCS) exceeding 200 MPa—such as basalts, granites, quartzites, or diabase—the operational efficiency often collapses.

For the end-user, a low Rate of Penetration (ROP) is a severe financial crisis. With standard RBM operational rig rates hovering between $800 and $1,500 per hour, slow drilling translates to escalating shift costs and delayed project critical paths. A 150-meter ventilation raise budgeted for 15 days can easily stretch to 40 days if the ROP drops from an anticipated 1.5 meters/hour to 0.4 meters/hour.

Contractors often react to low ROP by blindly increasing thrust and RPM, attempting to brute-force the rock. This inevitably leads to catastrophic bearing failure and insert spalling. Optimizing ROP requires a deep understanding of rock mechanics, precisely matching the solid tungsten carbide insert profile to the rock mass strength, and mastering cutter kinematics.

The Physics of Rock Breakage: Hertzian Contact Stress

To optimize ROP, one must first understand exactly how a solid tungsten carbide roller cone cutter fractures rock. A roller cutter does not "cut" or shear hard rock like a Drill Bit in metal; it relies on high-pressure indentation and brittle fracture, driven by the principles of Hertzian contact mechanics.

The excavation cycle occurs in three distinct phases:

1. The Indentation Phase: As the reamer head rotates, the thrust of the RBM forces a single tungsten carbide insert into the rock face. The microscopic contact area concentrates the load, generating extreme localized pressure (Hertzian contact stress). When this applied pressure exceeds the rock's UCS, the rock yields, forming a localized "crushed zone" of powdered dust beneath the insert tip.

2. The Propagation Phase: Rock is exceptionally strong in compression but weak in tension (often possessing a tensile strength only 1/10th of its compressive strength). As the insert wedges deeper, it displaces the crushed material laterally. This outward displacement generates immense tensile stress in the surrounding intact rock, causing radial micro-cracks to propagate downward and outward.

3. The Spalling Phase (Chip Formation): Maximum ROP is achieved when the radial cracks generated by one insert intersect with the cracks from an insert on the adjacent Cutting track (the kerf). The rock between the two tracks undergoes tensile failure, and a large volumetric rock chip spalls off the face.

Efficiency Metric: Drilling efficiency is measured by Specific Energy—the amount of energy required to excavate a given volume of rock. The lowest specific energy (and highest ROP) is achieved when the RBM generates large rock chips rather than fine powder.

Insert Profiles: Matching Geometry to Rock Mass Strength

The geometry of the solid tungsten carbide insert is the single most critical variable in initiating rock fracture. The profile dictates the surface area of the tool-rock interface, which directly governs the required thrust.

Cutter Kinematics: True Rolling vs. Skidding

Insert profile is only half of the ROP equation. The other half is cutter kinematics—how the geometric design of the tool forces it to move across the rock face.

The Mathematics of Offset

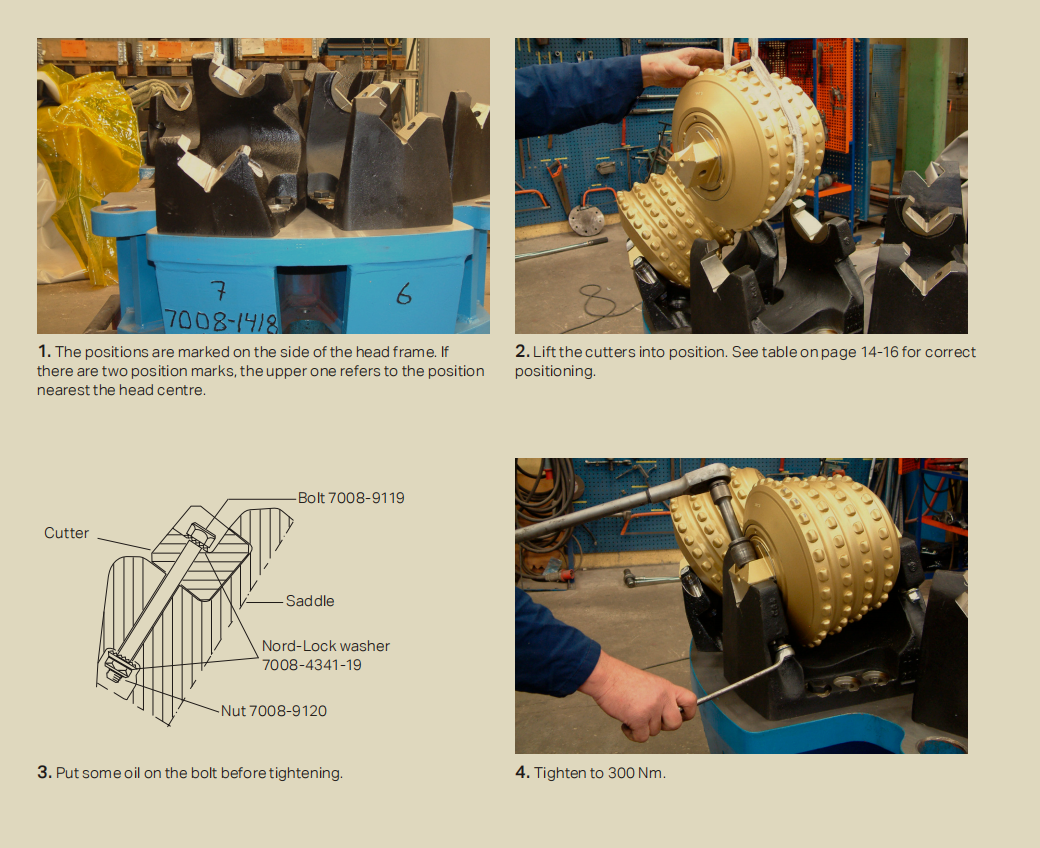

If a roller cone cutter is mounted with its central axis perfectly intersecting the center of the reaming head, it operates with zero offset. The inserts press directly down into the rock and lift directly out, achieving "true rolling."

Many cutters, however, are manufactured with a geometric offset (e.g., 2 to 4 degrees). As an offset cutter rolls, the misalignment forces the cone to skid or drag laterally across the rock face.

• Soft Rock Application: In formations under 100 MPa, this skidding action mechanically scrapes the rock away, drastically increasing the volume of rock removed and skyrocketing the ROP.

• Hard Rock Failure: In ultra-hard rock (>200 MPa), the rock will not yield to lateral shearing. Using a high-offset cutter in granite results in the rock aggressively grinding away the tungsten carbide inserts via abrasive wear.

Actionable Insight: For ultra-hard rock, end-users must specify cutters designed for zero offset. All RBM rotational torque and thrust must be directed vertically into crushing, rather than wasted on horizontal friction.

The Non-Linear Drilling Threshold

A dangerous misconception among RBM operators is that ROP scales in a straight line with applied thrust. In reality, rock drilling follows a non-linear curve governed by the "drilling threshold."

1. The Grinding Phase (Sub-Threshold): If the thrust applied is less than the rock's compressive strength, the inserts cannot penetrate deeply enough to connect radial cracks. ROP is abysmal (often < 0.3 m/hr). The machine wastes enormous energy grinding rock into abrasive powder, which rapidly destroys the steel cone shell.

2. The Chipping Phase (Optimal Threshold): Once thrust crosses the critical threshold (the rock's yield point), penetration depth suddenly increases. Crack propagation connects adjacent kerfs, and the mechanism shifts from grinding to large-chip spalling. At this exact point, ROP spikes dramatically (often jumping to > 1.2 m/hr) with only a marginal addition of thrust.

3. The Floundering Phase (Over-Thrust): Pushing thrust well beyond the chipping phase forces the inserts entirely into the rock until the steel cone shell "bottoms out" against the rock face. The cutters can no longer roll, torque spikes violently, and ROP plateaus before dropping.

Operators must conduct systematic "drill-off" tests to find and maintain thrust perfectly within the Chipping Phase.

Engineer's Troubleshooting FAQ: Low ROP in Hard Rock

Q: My RBM is producing fine, dusty cuttings instead of distinct rock chips, and the ROP is below 0.5 meters/hour. What is wrong?

A: You are operating below the drilling threshold in the "grinding phase." The applied thrust is insufficient to overcome the rock's Unconfined Compressive Strength (UCS) and initiate tensile spalling. Solution: Gradually increase thrust until you observe a sudden spike in ROP and the bailing fluid returns large rock chips. If you reach your machine's maximum thrust capacity and are still grinding, your insert profile is too blunt (e.g., spherical); you must switch to a ballistic profile to concentrate the force.

Q: We applied maximum thrust to increase ROP in granite, but the rotary torque is wildly erratic and the machine is stalling. Why?

A: You have pushed the cutters into the "floundering phase." The inserts are buried too deeply, and the steel body of the cutter is dragging against the rock face, or the excessive thrust has caused the internal tapered roller bearings to bind. Solution: Immediately reduce thrust by 15-20%. Maximum thrust does not equal maximum ROP; you must find the specific load that allows the cutters to roll freely while spalling rock.

Q: Why are the tungsten carbide inserts on our cutters wearing completely flat on one side after only 20 meters of hard rock drilling?

A: Asymmetrical flattening of inserts is a classic sign of "skidding." This occurs for two reasons: either the internal bearings have failed (causing the cone to drag instead of roll), or you are using cutters with a high geometric offset in ultra-hard rock. Solution: First, inspect the bearings for lock-up. If the bearings spin freely, verify with your tooling manufacturer that you are using zero-offset cutters engineered for true rolling in hard rock geology.
