Preventing Premature Bearing and Seal Failures in High-Thrust Raise Boring: Thermal Management and Internal Architectures
Thermal Thresholds & Grease Drop Points: Standard Hydrogenated Nitrile Butadiene Rubber (HNBR) elastomeric seals permanently degrade at 150°C (300°F). Internal operating temperatures exceeding the lubricating grease's drop point (typically 180°C to 220°C) cause the base oil to separate from the thickener, resulting in catastrophic dry running.
Dynamic Load Breaches: Exceeding the bearing's dynamic load rating under high machine thrust breaches the microscopic 2-micron oil film separating the rollers and races, triggering metal-on-metal micro-welding and rapid bearing spalling.
Hydrostatic Pressure Equalization: In flooded shafts, deep-hole hydrostatic pressure can collapse metal face seals. Cutters must utilize an internal flexible rubber diaphragm to achieve 1:1 pressure compensation between the internal grease reservoir and external bailing fluid.

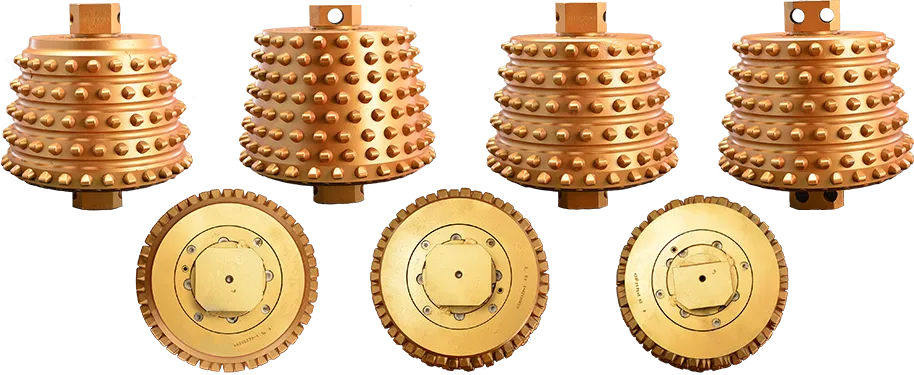

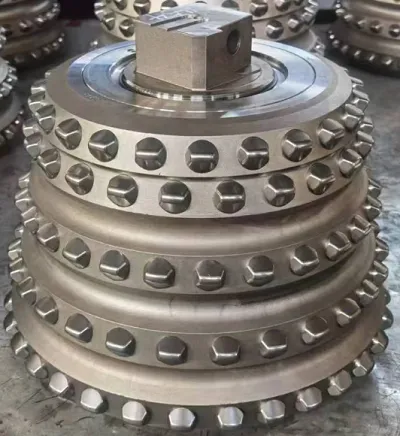

In the demanding discipline of raise boring, operational focus is almost exclusively cast on the external Cutting structure—the solid tungsten carbide inserts. However, the most robust carbide profile is entirely useless if the internal mechanical components supporting it fail.
For the raise boring end-user, premature bearing and seal failure is a severe financial hazard. Unlike carbide wear, which is visible and predictable, internal failure is sudden. When a bearing collapses under high thrust, the cutter locks up. As the Raise Boring Machine (RBM) continues to rotate, the locked cutter is dragged across the rock face.
With rig rates averaging $800 to $1,500 per hour, a locked cutter can grind a flat spot into the steel cone within 20 minutes, destroy the mounting saddle, or detach entirely down the shaft. Preventing this requires a shift from examining the rock interface to mastering the thermodynamics and tribology of the cutter's internal architecture.
Roller cutter lock-up is rarely a spontaneous event; it is a cascading failure triggered by mechanical overload, thermal degradation, or seal breach.
High-thrust roller cutters have finite dynamic load ratings. When operators push RBM thrust beyond these limits to force penetration in ultra-hard rock (>200 MPa), the intense axial and radial loads compress the internal rolling elements.
If the pressure exceeds the load-bearing capacity of the internal grease, the microscopic hydrodynamic oil film is pierced. This metal-on-metal contact causes immediate micro-welding between the rollers and the bearing races. As the cutter forces rotation, these welds tear apart, a process known as spalling. Friction skyrockets, and total lock-up follows within hours.
The specialized internal grease serves two functions: friction reduction and thermal transfer. High thrust combined with high Rotary Speed (RPM) generates extreme internal frictional heat.
If the internal temperature exceeds the grease's drop point, the fluid loses its viscosity and leaks past the seals. Once a bearing operates in a boundary lubrication regime (dry running), the steel components undergo thermal expansion, closing the internal clearances and seizing the cone.
The most common root cause of bearing failure in RBM operations is the ingress of highly abrasive silica slurry. The seal is the only barrier protecting precision-machined bearings from the hostile shaft environment. If the seal fails, quartz particles (measuring 7 on the Mohs hardness scale) mix with the grease, creating a highly effective lapping compound that grinds the internal bearings to dust.
Procurement must specify the correct internal architecture based on the specific load requirements of the shaft.
| Bearing Type | Load Capacity Mechanism | Thermal Profile | Optimal Application |
| Tapered Roller Bearings | Angled rollers handle massive simultaneous axial and radial loads. | Moderate heat generation. Excellent heat dissipation. | Deep shafts / Hard Rock. The industry standard for high-thrust RBM Cutters. |
| Journal (Friction) Bearings | Eliminates rolling elements for massive surface area and impact resistance. | High fluid friction. Generates significant internal heat. | Variable / Soft Rock. Highly sensitive to high RPMs; requires absolute seal perfection. |
The evolution of RBM cutter seals is a continuous battle against pressure, heat, and abrasion.
Elastomer (HNBR) Seals: Rely on compression against rotating steel. They are cost-effective but highly susceptible to thermal degradation above 150°C. Fine rock dust frequently packs under the seal lip, lifting it and allowing slurry ingress.
Metal Face Seals (Mechanical Seals): The premium standard. Two perfectly flat, highly polished alloy steel rings are pressed together by rubber O-rings. The microscopic gap allows grease to seep out for lubrication but prevents particles larger than 3 microns from entering.
Pressure Equalization Systems: At 500 meters depth in a flooded shaft, external hydrostatic pressure exceeds 5 MPa (725 PSI). This pressure will crush a metal face seal inward. Premium cutters feature an internal rubber diaphragm in the grease reservoir. As external fluid pressure rises, it compresses the diaphragm, pressurizing the internal grease to perfectly equalize with the outside environment.
Preventing bearing failure dictates that the RBM operator actively manages the tool's thermodynamics through machine parameters.
The Vapor Lock Danger: In hard-rock drilling, if bailing fluid flow is insufficient (annular velocity < 1.5 m/s), the water contacting the heavily loaded tungsten carbide boils instantly. This creates a localized "vapor jacket." Because steam is a poor thermal conductor, the cutter's internal temperature spikes exponentially, melting the elastomeric seals. Action: Maintain high-volume fluid circulation to ensure liquid-phase cooling at the rock face.
The Thrust/RPM Inverse Rule: Heat generation is a product of Load (Thrust) $\times$ Velocity (RPM). If geological conditions require extremely high thrust to surpass the rock's compressive strength, the operator must strictly reduce the RPM to keep frictional heat below the 150°C seal-degradation threshold.
Q: The RBM torque gauge is spiking erratically, but the Rate of Penetration hasn't changed. Should I push through it?
A: No. Erratic, sharp torque spikes are the primary early-warning indicator that a cutter bearing is binding due to spalling or abrasive ingress. Pushing through will cause the cutter to lock up completely and grind a flat spot into the cone. Solution: Stop thrusting immediately, raise the reamer off the face, and allow the bailing fluid to cool the cutters. If torque spikes persist upon resuming, a cutter has failed and requires a trip.
Q: During a maintenance inspection, I spun a cutter by hand and it rotated completely freely like a bicycle wheel, with no resistance. Is this good?
A: This is a critical failure indicator. A healthy RBM cutter bearing should rotate smoothly but present a distinct, viscous resistance due to the thick internal lubricating grease. A cutter that spins entirely freely has lost its grease due to thermal breakdown or seal failure, and will seize on the next drilling pass. Solution: Remove and replace the cutter immediately.
Q: Our premium cutters with metal face seals were completely flooded with rock slurry after a deep, wet shaft pass. Why did the seals fail?
A: If metal face seals flood in deep shafts without thermal damage, the internal pressure compensation system failed. This almost always occurs because maintenance personnel failed to properly purge air bubbles from the reservoir during greasing. Under hydrostatic pressure, the air bubble compresses, the grease fails to equalize pressure, and the external water column crushes the seal inward. Solution: Implement vacuum-greasing procedures to ensure zero air entrapment during tool rebuilds.
